Horizontal Openwell Submersible Pump (V9CI) Salient Features
- Compactly designed pump set for easy handling and installation.
- Rotor are grinding & burnished to give better surface finish value which ensure long life.
- Front side carbon bearing with stainless steel thrust plate and backside GM LTB-4 counter bush with Teflon plate for longer life under various conditions.
- Sleeves and thrust bearings designed for longer life.
- Advanced hydraulic design for highest energy efficiency in the pump set.
- Dynamically balanced rotating parts ensures minimum vibration and longer life.
- High grade cast iron for a better life even in heavy and contaminated water.
- Designed for wide voltage application.
- Starts easily at low voltage, easy installation and low maintenance.
FeaturesTechnical Details
Higher Operating Efficiencies

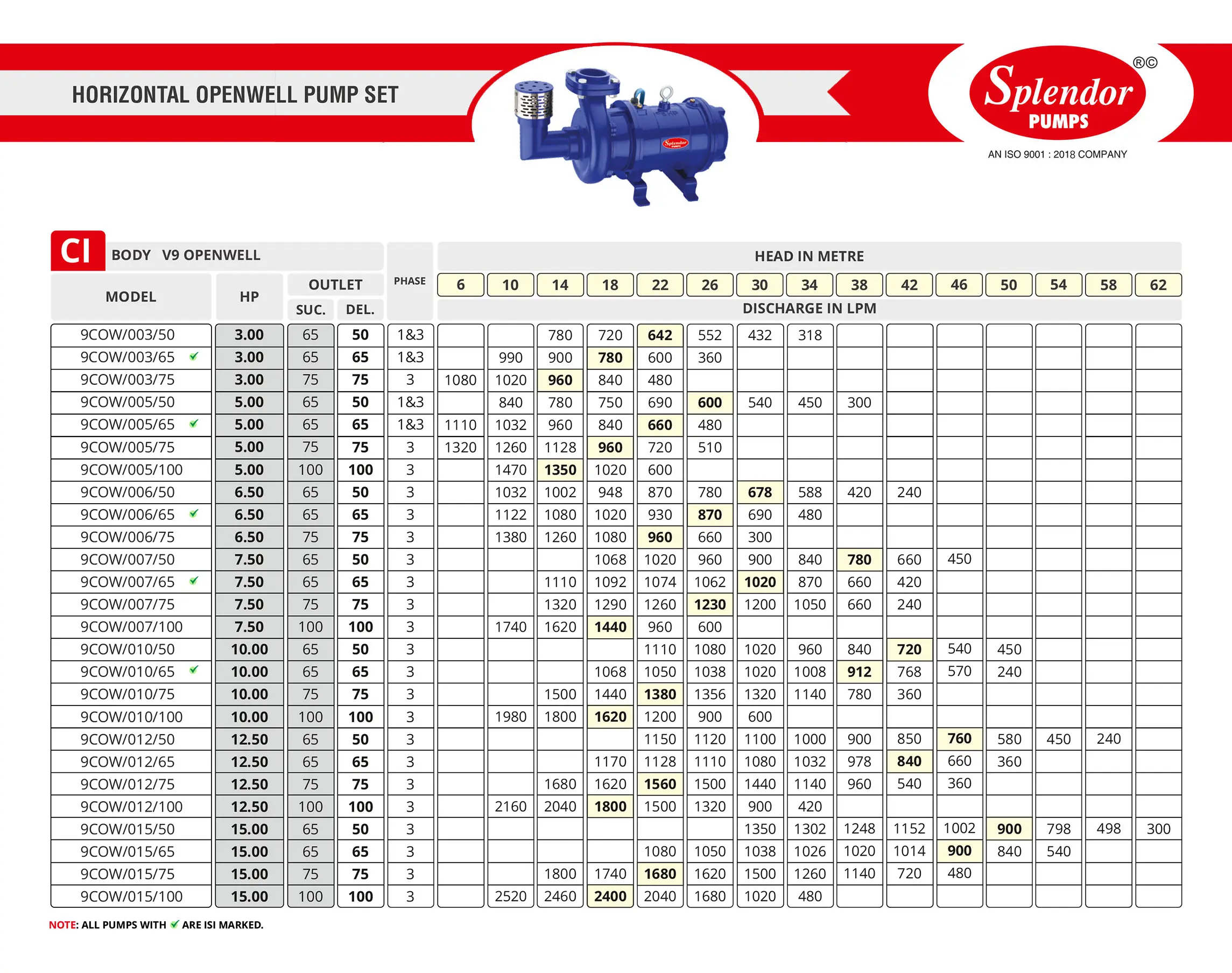

Technical Specifications
Material Of Construction | TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| 1 | KW / HP RANGE | 0.37/050 To 11.00 / 15.00 |
| 2 | VOLTAGE RANGE | 160 TO 220 VOLT ( SINGLE PHASE) |
| 3 | DISCHARGE LPM | UP TO 3000 LITRE |
| 4 | HEAD | UP TO 70 METRE |
| 5 | suction | 25 & 100 MM |
| 6 | DELIVERY | 25 & 100 MM |
| Material Of Construction | ||
|---|---|---|
| 1 | IMPELLER | CAST IRON / GLASS FILLED NORYL |
| 2 | CASTING PART | CAST LRON FG 200 GRADE |
| 3 | BUSH | CARBON / GM LTB-4 |
| 4 | WINDING | MULTI LAYER PVC WIRE |
| 5 | NUT & BOLT | ms /ss |
| 6 | BODY | $5-J4/ CAST IRON |
| 7 | MOTOR SHAFT | 55-420 |
| 8 | THRUST BEARING | CARBON V/s SS (DUAL) |
| 8 | STAMPING | silicon steel |
| 8 | ROTOR | COPPER / ALU. PRESSURE DIE – CAST |
TechnicalSpecifications
Higher Operating Efficiencies
An ISO 9001:2018 Company
An Agricultural Pump Industry Since 1997
