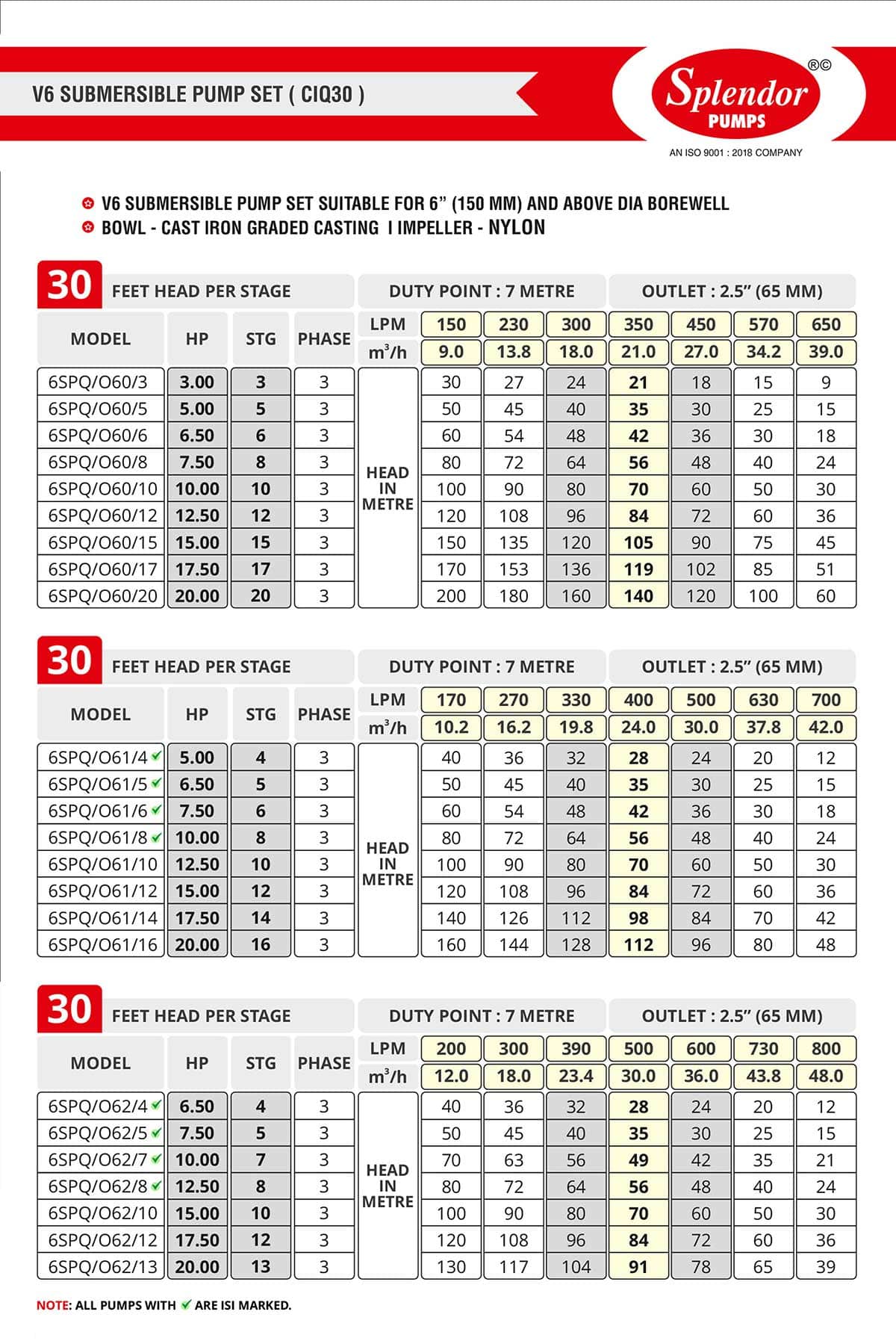

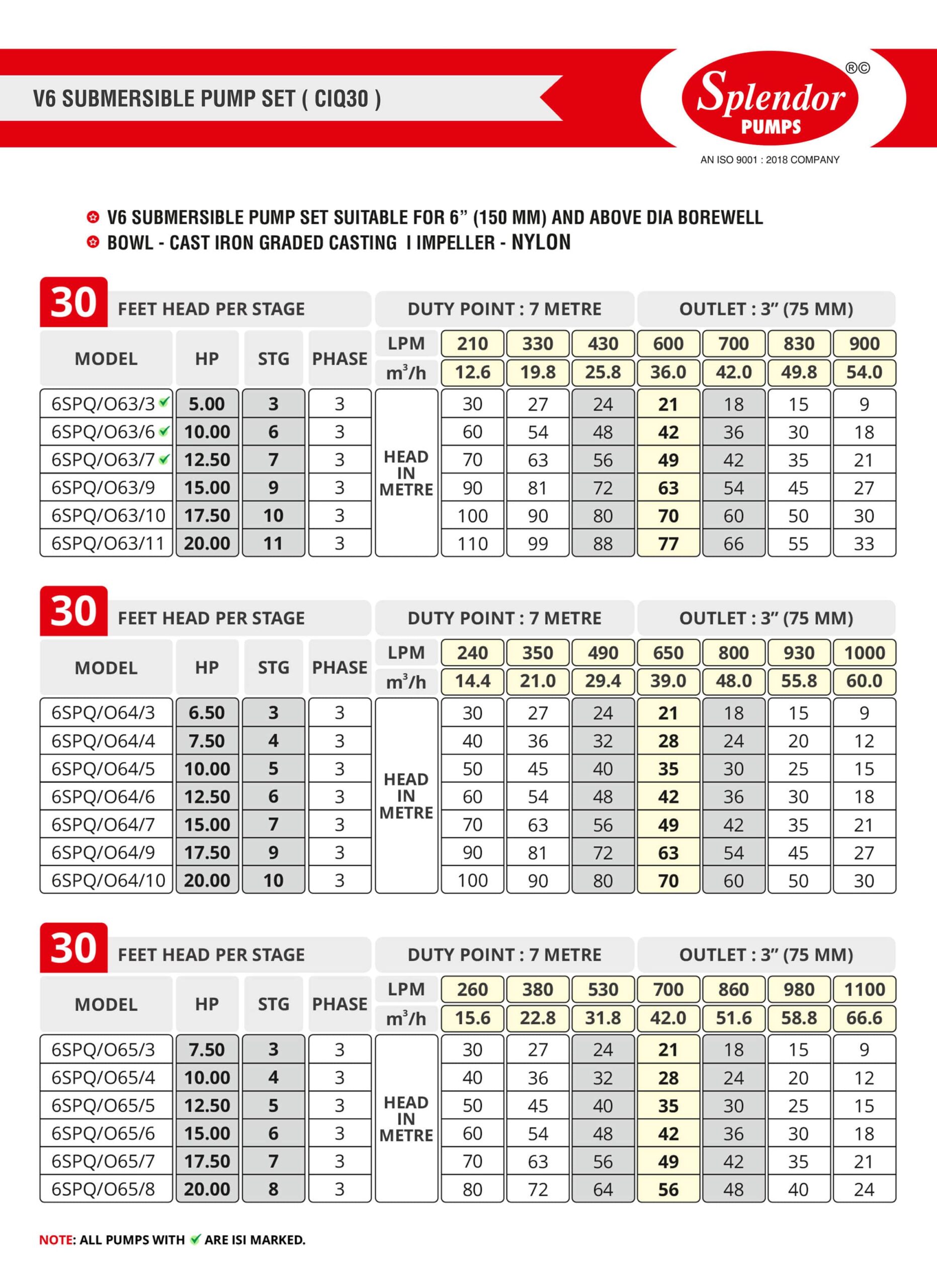

V6 Submersible Pump Set (CIQ30) Salient Features
- Optimized hydraulic design for efficient performance.
- Rotor are grinding & burnished to give better surface finish value which ensure long life.
- Specially designed thrust bearing to withstand high axial load.
- Sleeve and thrust bearing designed for longer life.
- High operating efficiency & more durability and hygiene.
- Dynamically balances rotating parts to ensure minimum vibration and longer life.
- SS - 410 impeller available in mixed flow series.
- Designed for wide voltage applications.
- Starts easily at low voltage, easy installation and low maintenance.
FeaturesTechnical Details
Higher Operating Efficiencies
Technical Specifications
Pump Material
Motor Material | TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| 1 | KW / HP RANGE | 3.70 / 5.00 TO 15.00 / 20.00 |
| 2 | VOLTAGE RANGE | 380 TO 440 VOLT ( THREE PHASE ) |
| 3 | DISCHARGE LPM | UP TO 1200 LITRE |
| 4 | HEAD | UP TO 225 METRE |
| 5 | PUMP DIA | 142 MM |
| 6 | MOTOR DIA | 142 MM |
| Pump Material | ||
|---|---|---|
| 1 | DIFFUSER | CAST IRON FG 200 GRADE |
| 2 | IMPELLER | NYLON / SS – 410 |
| 3 | CASTING PART | CAST IRON FG 200 GRADE |
| 4 | BUSH | GM LTB- 4 / NBR |
| 5 | PUMP SHAFT | SS – 410 |
| 6 | SLEEVE AND COUPLING | SS – 410 |
| Motor Material | ||
|---|---|---|
| 1 | MOTOR BODY | SS – J4 |
| 2 | MOTOR SHAFT | SS – 420 |
| 3 | CASTING PART | CAST IRON FG 200 GRADE |
| 4 | BUSH | CARBON / GM LTB – 4 |
| 5 | THRUST BEARING | CARBON V/S SS |
| 6 | STAMPING | SILICON STEEL |
| 7 | ROTOR | COPPER / ALU. PRESSURE DIE – CAST |
| 8 | WINDING | MULTI LAYER PVC INSULATED WIRE |
TechnicalSpecifications
Higher Operating Efficiencies
An ISO 9001:2018 Company
An Agricultural Pump Industry Since 1997
